AcuSense DVR

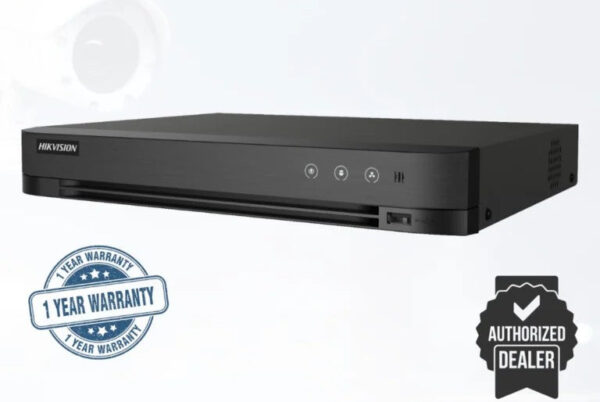

The Hikvision iDS-7232HQHI-M2/XT 32-ch 1080p AcuSense DVR is engineered for professional-grade surveillance, delivering outstanding image clarity, smart detection, and seamless integration into any security setup.

Key Features

• 32 channels and 2 HDD 1U AcuSense DVR
• Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
• Support 8-ch AcuSearch Technology
• Efficient H.265 pro+ compression technology
• Encoding ability up to 3K/ 5MP Lite@12fps
• Up to 40 channels IP camera inputs, each channel up to 6MP
• Up to 24*1080P@30fps decoding ability
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Support All channels Motion Detection Technology
• Support All channels HDTVI Two-Way Audio Technology

• Specification

  • Facial Recognition

  • Face Picture Library

    Up to 16 face picture libraries ;

    HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.

  • Face Picture Comparison (Captured from Camera)4-ch face picture comparison alarm (HD analog camera)

  • Motion Detection 2.0

  • Human/Vehicle Analysis

    Deep learning-based motion detection 2.0 is enabled by default for all analog channels,

    it can classify human and vehicle, and extremely reduce false alarms caused by objects

    like leaves and lights;

    Quick search by object or event type is supported;

  • Perimeter Protection

  • Human/Vehicle Analysis Up to 8-ch (advanced model)
  • Facial Detection
  • Facial Detection and Capture

    Face picture detection, face picture search；

    4-ch face picture capture

  • Video and Audio

  • IP Video Input8-ch (up to 40-ch), each up to 6 MP resolution,
  • Analog Video Input

    32-ch

    BNC interface (1.0 VP-p, 75 Ω), supporting coaxitron connection

  • HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output

    1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

    HDMI/VGA simultaneous output

  • CVBS Input PAL/NTSC
  • CVBS Output

    1-ch, BNC (1.0 VP-p, 75 Ω),

    resolution: PAL: 704 × 576, NTSC: 704 × 480

  • Synchronous playback16-ch
  • HDTVI Input3K(2960 x 1665)@25/20fps, 3K(3328×1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  • AHD Input5 MP(2560 × 1944)@20fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  • HDCVI Input3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Audio Input1-ch, RCA (2.0 VP-p, 1 KΩ)，32-ch via coaxial cable
  • Two-Way Audio1-ch, RCA (2.0 VP-p, 1 KΩ) (using the audio input)

  • Recording

  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution

    When 1080p Lite mode is not enabled:

    3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

    When 1080p Lite mode is enabled:

    3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

  • Frame Rate

    Main stream:

    When 1080p Lite mode not enabled:

    For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps

    For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps

    For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

    For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

    For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

    When 1080p Lite mode enabled:

    3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

    Sub-stream:

    WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

  • Video Bitrate32 Kbps to 10 MBPS
  • Dual-stream Support main stream or sub stream
  • Stream Type Video, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps

  • Decoding

  • Decoding Capability up to 24-ch 1080P@30fps

  • Network

  • Total Bandwidth256Mbps
  • Network Protocol TCP/IP, PPPOE, DHCP, HIK-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
  • Remote Connection128
  • Network Interface

    1, RJ45 10/100/1000 MBPS self-adaptive Ethernet interface



  • Auxiliary Interface

  • SATA2 SATA interfaces
  • Capacity Up to 12 TB capacity for each disk
  • Serial InterfaceRS-485 (half-duplex)
  • USB Interface

    Front panel: 1 × USB 2.0

    Rear panel: 2 × USB 3.0

  • Alarm In/Out N/A (optional to support)

  • General

  • Power Supply12 VDC, 5 A
  • Consumption≤ 60 W
  • Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)
  • Weight≤ 2.1 kg (4.6 LB)
