AcuSense DVR

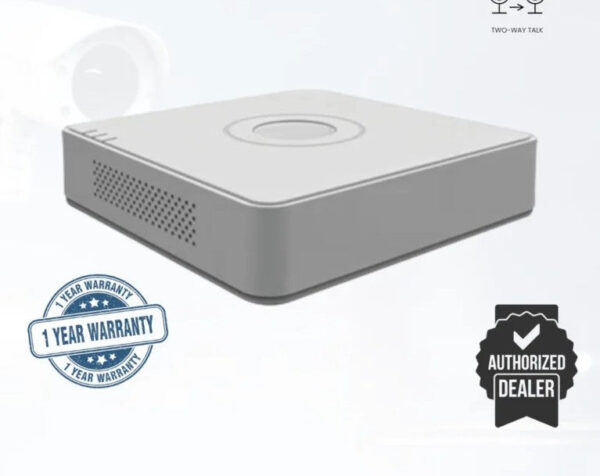

The Hikvision iDS-7108HQHI-M1/S 8-ch 1080P Mini AcuSense DVR is engineered for professional-grade surveillance, delivering outstanding image clarity, smart detection, and seamless integration into any security setup.

Key Features

• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• Deep learning-based perimeter protection
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/AHD/CVI/CVBS/IP video inputs
• Audio via coaxial cable
• Up to 12-ch IP camera inputs (up to 6 MP)
• Encoding ability up to 3K/5M Lite @ 12 fps

• Specification

  • Motion Detection 2.0

  • Human/Vehicle Analysis

    Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

    Quick search by object or event type is supported;

  • Perimeter Protection

  • Human/Vehicle Analysis   Up to 4-ch

  • Facial Detection

  • Facial Detection and Capture  Face picture detection, face picture search

  • Video and Audio

  • IP Video Input

    2-ch (up to 10-ch)

    Enhanced IP mode on:

    4-ch (up to 12-ch), each up to 4 MBPS

    Up to 6 MP resolution

    Support H.265+/H.265/H.264+/H.264 IP cameras

  • Analog Video Input

    8-ch

    BNC interface (1.0 VP-p, 75 Ω), supporting coaxitron connection

  • HDTVI Input3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
  • AHD Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
  • HDCVI Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
  • CVBS InputSupport
  • HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • Video Output Mode HDMI/VGA simultaneous output

  • Audio Input

    1-ch, RCA (2.0 VP-p, 1 KΩ)

    8-ch via coaxial cable

  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Synchronous Playback8-ch
  • Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution

    When 1080p Lite mode is not enabled:

    3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

    When 1080p Lite mode is enabled:

    3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

  • Frame Rate

    Main stream:

    When 1080p Lite mode not enabled:

    For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

    For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

    For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

    For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

    For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

    When 1080p Lite mode enabled:

    3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

    Sub-stream:

    WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

  • Video Bitrate32 Kbps to 6 MBPS
  • Dual-stream Support
  • Stream Type Video, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps

  • Network

  • Total Bandwidth96 MBPS
  • Remote Connection64
  • Network Protocol TCP/IP, PPPOE, DHCP, HIK-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Network Interface1, RJ45 10/100 MBPS self-adaptive Ethernet interface
  • Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

  • Auxiliary Interface

  • SATA1 SATA interface
  • Capacity Up to 10 TB capacity for each disk
  • Alarm In/Out N/A
  • USB Interface Real panel: 2 × USB 2.0

  • General

  • Power Supply12 VDC, 1.33 A
  • Consumption≤ 12 W (without HDD)
  • Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
  • Weight≤ 1 kg (without HDD, 2.2 lb.)
