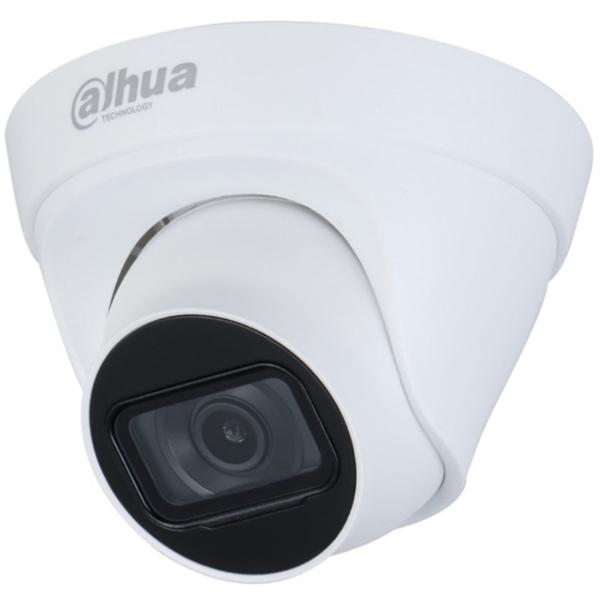

2MP, 1/2.7″ CMOS image sensor, low illuminance, high image definition. Outputs max. 2MP (1920×1080) @25/30 fps. H.265 codec, high compression rate, ultra-low bit rate. Built-in IR LED, max. IR distance 30m. ROI, SMART H.264/H.265 flexible coding. Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking. Abnormality detection: motion detection, video tampering, network disconnection, IP conflict, illegal access. 12V DC/PoE power support. IP67 protection.
Key Features:
- 2MP 1/2.8″ progressive CMOS
- 105 degree field of view, 2.8mm fixed lens
- 30m IR distance
- H.264/H.264+/H.265/H.265+/MJPEG
- PoE 802.3af support
- IP67 rated
- ONVIF; CGI; P2P; Genetec compatible
- DMSS mobile app
Technical Specifications:
- Matrix Resolution: 2 Mpx
- Matrix Type: 1/2.8″ progressive CMOS
- Focal Length: 2.8 mm
- Viewing Angle: 105 degree
- Light Sensitivity: 0.01 Lx / F2.0, 0 Lx with IR
- Light Distance: 30 m
- Video Compression: H.264, H.264+, H.265, H.265+, MJPEG
- PoE: 802.3af
- Consumption: 4.3 W
- Operating Voltage: 12V DC, PoE
- Dimensions: 85.5 x diameter 109 mm
- Weight: 240 g
- Temperature Range: -40 to +60C
- Protection: IP67
- Network: 1xRJ45
